SNIPER V2
road bike
*Breakwind design
*Carbon fiber front fork and seat tube
*Hidden clipper
| Configuration |
| Wheel Size | 700C | ||
| Frame Height | 44CM / 46CM / 48CM / 50CM / 52CM / 54CM | ||
| Bike Color | BlackRed / Black / BlackWhite / BlackYellow | ||
| Net Weight | ≈9.1kg | ≈8.9kg | ≈8.9kg |
| ConfRev | R3000-18S | 4700-20S | 5800-22S |
| Frame | SNIPER V2 ROAD,Superlight Alu Alloy AL7005,Aero-Racing,Hidden-Brake Design,Internal-Cable,Cut-Matte | ||
| Handlebarsets | TW Superlight Alu Alloy AL7005,Aero-Design,Matte,Handlebar 31.8×420mm,Stem 90mm,Carbon Seat Post | ||
| Fork | SNIPER V2 Superlight Carbon 3K,Hidden-Brake Design,700C | ||
| Handle lever | SHIMANO SORA/R3000-18S | SHIMANO TIAGRA/4700-20S | SHIMANO 105/5800-22S |
| Front derailleur | SHIMANO SORA/R3000 | SHIMANO TIAGRA/4700 | SHIMANO 105/5800 |
| Rear derailleur | SHIMANO SORA/R3000 | SHIMANO TIAGRA/4700 | SHIMANO 105/5800 |
| Cranksets | RS-WHELL Alu Alloy CNC Hollow,34-50T | RS-WHELL Alu Alloy CNC Hollow,34-50T | SHIMANO 105/5800 Hollow,34-50T |
| Cassettes | SUGEK-9S,11-28T | SUGEK-10S,11-28T | SHIMANO 105/5800-11S,11-28T |
| Chain | YBN-9S | YBN-10S | SHIMANO HG600--11S |
| Brake | WINZIP ROAD Hidden C-Style | WINZIP ROAD Hidden C-Style | WINZIP ROAD Hidden C-Style |
| Hubs | RS Alu Alloy,4-Bearings,Slotted,Front 18-Rear 21Holes | ||
| Rim | RS Alu Alloy AL7005,Double wall,Matte,W23×H40mm×700C, ( H30mm Optional,lighter 300g ) | ||
| Spoke | SHUNJIU,Flat 14G Straight | ||
| Tire | MAXXIS-SIERRA, 700C×23C | ||
| Grips | Belt with Woven and Comfortable | ||
| Saddle | TW Comfortable and Lightweight for ROAD | ||
| Pedals | SYUN SuperlightAlu Alloy CNC with Bearings for ROAD | ||
| Cables | JAGWIRE,Internal Cables,External Cables | ||
The adjustment of individual components due to batches is subject to change without prior notice. The factory confirmation is subject to change. At the same time, we reserve the right to optimize the information on the website to ensure that TWITTER products are consistent with the actual products.
| Key Technology |
 |  |  |
| Broken wind design, hydraulic forming pipe, DB pipe, T4-T6 reinforcement, creating a high-quality aluminum frame that combines light weight, toughness and low resistance. | High modulus carbon fiber 18K front fork and seat tube, excellent strength, improved riding efficiency and explosive force, and effectively reduce the weight of the car body | High-quality aluminum alloy material, broken wind structure design, 3D forming one handlebar and handlebars, simplifying and simplifying, leading the line to break the challenge |
| Reflective process |
The reflective labeling process developed by the company is the point of fascination for riding.
 |  |
Normal daylight, low-key, no loss of connotation Side shot at night, reflective safety

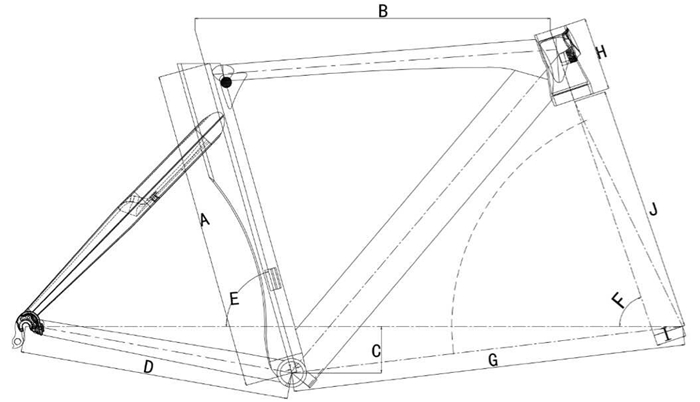

| Frame Geometry |
| The professional geometric structure optimization design allows the rider to easily face the challenges of cruising, climbing and breaking the line; the balance, stiff and lightweight body, the core guarantees excellent riding quality! | |||||||||
| |||||||||
| Measuring Unit：mm | |||||||||
| A(size) | B (upper tube horizontal length) | C | D | E | F | G | H | I | J |
| 440 | 512.7 | 70 | 398 | 75 | 72 | 577 | 95 | 44 | 371 |
| 460 | 515.9 | 70 | 398 | 75 | 72 | 582 | 110 | 44 | 371 |
| 480 | 523.3 | 70 | 398 | 74.5 | 71.5 | 582 | 110 | 44 | 371 |
| 500 | 527.7 | 70 | 398 | 74.5 | 72 | 582 | 110 | 44 | 371 |
| 520 | 536.6 | 70 | 398 | 74 | 72.5 | 582 | 120 | 44 | 371 |

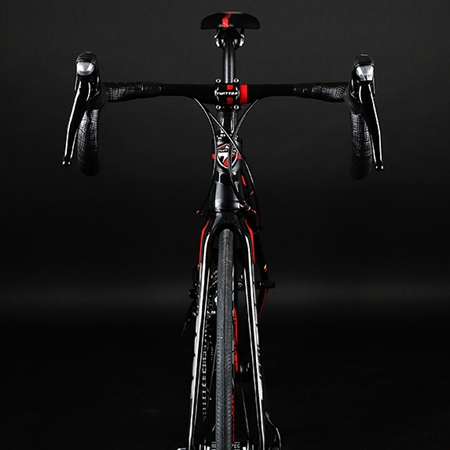

| Different Angles Show |
 |  |
SNIPER V2 Windbreaker Road Bike
